M0000700 Flush Head Fixing Studs

M0000700

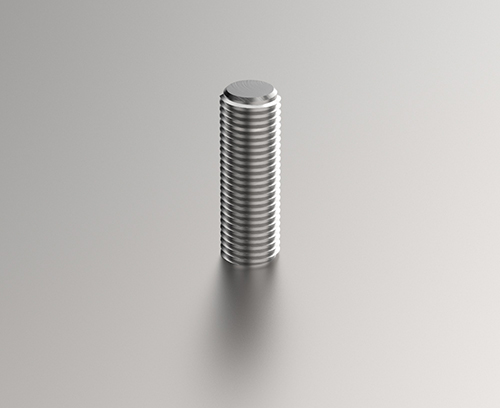

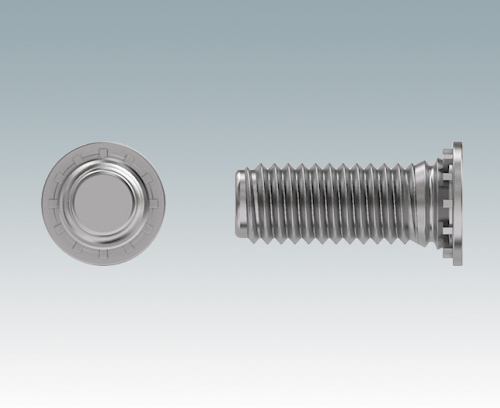

Flush Head Fixing Studs

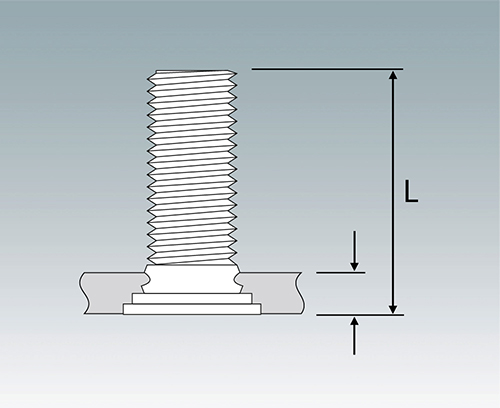

Flush mounted fixing stud which is press fitted to a hole in the panel.

Thread Size Lengths (mm) Mounting Hole (mm)
M2 6 | 8 | 10 | 12 | 16 | 18 | 20 Ø2
M2.5 6 | 8 | 10 | 12 | 15 | 18 | 20 Ø2.5
M3 5 | 6 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 30 | 35 Ø3
M3.5 8 | 10 | 12 | 15 | 16 Ø3.5
M4 6 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 45 | 50 Ø4
M5 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 50 Ø5
M6 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 45 | 50 Ø6

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Standards
REACH compliant
RoHS compliant

Catalogue Pages

Weight/1 part
1 g
