M0000721 Right Angle Panel Nuts

M0000721

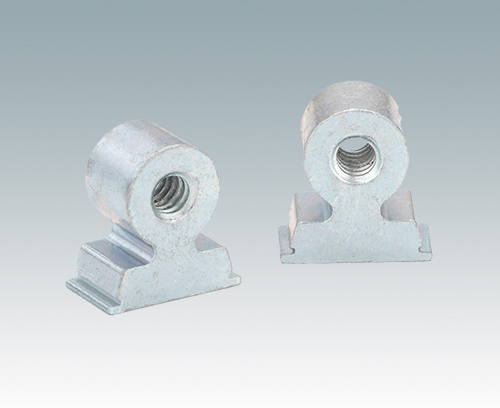

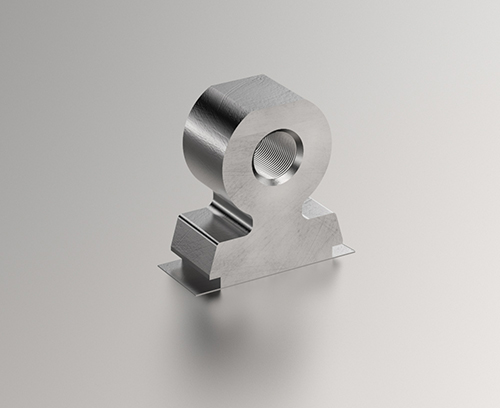

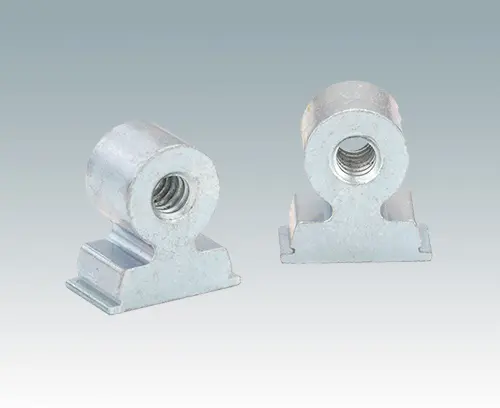

Right Angle Panel Nuts

Threaded right angle fastener which is press fitted into a rectangular hole in the panel.

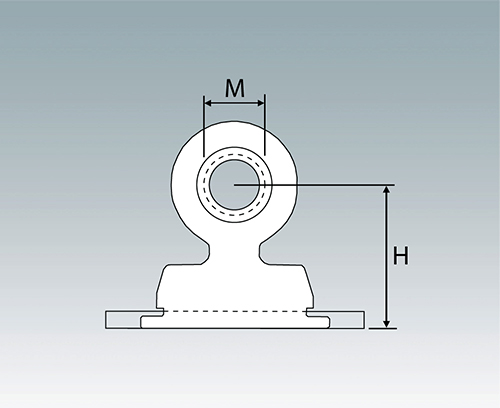

Thread Size Width (mm) Fixing Hole Height (mm) Mounting Hole (mm)
M3 2.89 7 8 x 3 mm
M3 3.89 7 8 x 4 mm
M3 5.89 7 8 x 6 mm
M4 3.89 9 10 x 4 mm
M4 6.89 9 10 x 7 mm
M4 8.89 9 10 x 9 mm

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Standards
REACH compliant
RoHS compliant

Catalogue Pages

Weight/1 part
1 g
