M5093005 Side arm kit
Scroll

M5093005

Side arm kit

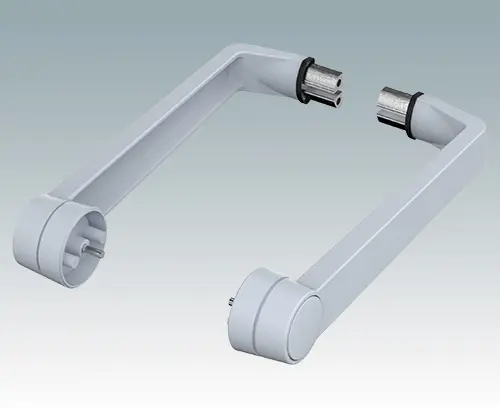

For canting and carrying the enclosure. Strong push-button ratchet with 30° indexing. The enclosure must be machined with three holes on each side in order to fit the side arm kit (see drilling details). A separate aluminium handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure). The handle profiles are available in a range of matching colours. In order to improve the stability, we recommend glueing the handle profiles to the side arms.

Supply

2 side arms (RAL 7035), 2 push-buttons (RAL 7035), 2 fastenings kits

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5093005

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

System components to complete

M50930-xxx Handle profile, RAL 9006

M50930-xxx

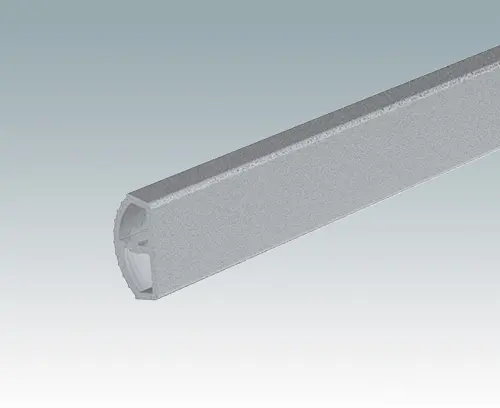

Handle profile, RAL 9006

Aluminium handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50930-324 with the handle painted in RAL 9006. If the enclosure dimension is 350.5 mm the part number would be M50930-324.5 with the handle painted in RAL 9006.

Supply Handle profile

Close

M50930-xxx

Handle profile, RAL 9006
product added to your basket
Aluminium
Silver metallic RAL 9006
M50935-xxx Handle profile, RAL 7035

M50935-xxx

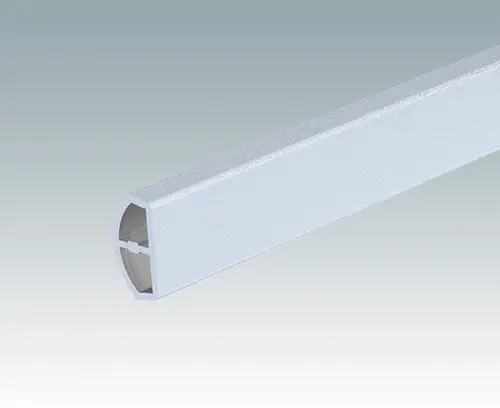

Handle profile, RAL 7035

Aluminium handle profile fits between the two side arms and is supplied cut to the required length (26 mm shorter than the width of the enclosure).

How to order: replace xxx in the part number with the length required. Example: 350 mm wide enclosure, handle profile length is 324 mm (350-26). So the part number will be M50935-324 with the handle painted in RAL 7035. If the enclosure dimension is 350.5 mm the part number would be M50935-324.5 with the handle painted in RAL 7035.

Supply Handle profile

Close

M50935-xxx

Handle profile, RAL 7035
product added to your basket
Aluminium
Light grey RAL 7035
