Technical Info

Technical Info

Here can you download our datasheets, certificates, REACH, RoHS & WEEE statements, assembly instructions and catalogues.

  • Data sheets / certifications
  • Assembly instructions
  • Catalogues
Drawings and 3D models files

How to download 2D Drawings and 3D Models?

1). Go to the individual product page of the part number you need (e.g. M6219145).

2). Open the 'DRAWINGS/INFO' tab at the bottom of the page. Here you can download the files.

NOTES:

- For 2D drawing files (.dwg/.pdf) you do not need to register, you can download them straightaway
(.dxf files can be supplied on request).

- For 3D models (.stp/.x_t/.sat) you need to register and then login before you can download these files.

ISO 9001:2015 Certificate

METCASE Quality Management System

Powder Paints Stock List

Stocked Powder Paints Colour Chart

There is no additional charge or minimum order quantity for painting standard enclosure parts in one of our stocked powder paint colours. View our standard powder paint colours here >>

Sheet metals stock list

Stocked Sheet Metals

We keep a large range of sheet metals in stock, aluminium for our standard enclosures and mild steel for custom housings and components. For each we have a wide selection of material grades, finishes and thicknesses so we can manufacture to your exact requirements. View our stocked sheet metals here >>

REACH Statement

REACH DIRECTIVE (EC) No. 1907/2006

ROHS / WEEE Directives Statement

WEEE (2012/19/EC), RoHS 2 (2011/65/EU), RoHS 3 (EU) 2015/863 and 94/62 EEC

Conflict Minerals Statement

Conflict Minerals
Dodd-Frank Wall Street Reform and Consumer Protection Act, Section 1502.

Discontinued Products List

Discontinued Products
If you cannot find a product on this site it may have been discontinued. Check our list.

Combimet 19

COMBIMET 19"

Highly versatile 19" rack mount cases in sizes: 1U, 2U, 3U, 4U, 5U and 6U.

Catalogue download language options:

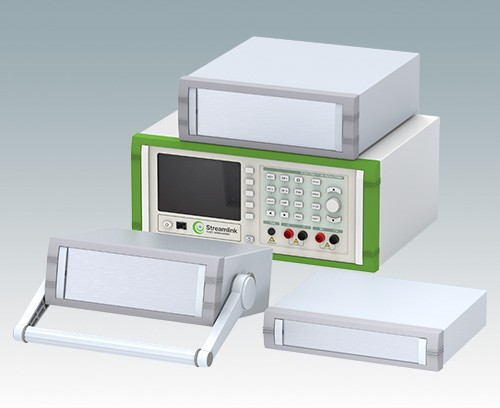

Download UNIMET catalogue >>

UNIMET

Modern desktop and portable instrument enclosures with or without a tilt/swivel carry handle bar.

Catalogue download language options:

Download HANDLE catalogue >>

UNIVERSAL CARRY HANDLE BARS FOR ENCLOSURES

Tilt and swivel carry handle bars made of diecast zinc. The matching aluminium handle profile is cut to the correct width for your enclosure.

Catalogue download language options:

Datamet Wall Enclosures

DATAMET
Stylish indoor wall mount enclosures with total access during installation.

Instrumet 19

INSTRUMET 19"
Stylish 3U instrument cases for mounting 19" subracks, chassis and panels. Sizes: 3U x 10.5", 3U x 19"

Mettec 19

METTEC 19"
Tough rack mount cases with removable front panel and PCB guide rails. Sizes: 1U, 2U, 3U

Minimet Enclosures

MINIMET
Small aluminium enclosures for desktop and portable electronics.

Technomet Instrument Enclosures

TECHNOMET
Advanced instrument enclosures for desktop and portable electronics.

Technomet 19

TECHNOMET 19"
Desktop mini-racks for fitting 19" subracks, chassis and front panels. Sizes 3U, 4U and 6U.

Unicase Enclosures

UNICASE
Universal aluminium instrument enclosures with internal PCB guide rails.

Unidesk enclosures

UNIDESK
Ergonomic sloping front desktop enclosures with optional IP 54 sealing.

Unimet 19

UNIMET 19"
Stylish 2U and 3U rack cases with removable front panel. Sizes: 2U and 3U

Unimet-Plus enclosures

UNIMET-PLUS
Advanced instrument enclosures with internal chassis for PCBs.

Versamet 19

VERSAMET 19"
Versatile 1U rack mount cases with fixed front panel.

ENCLOSURES ACCESSORIES

ENCLOSURES ACCESSORIES
Extensive range of accessories including case feet, tilt feet and PCB mounting accessories.
