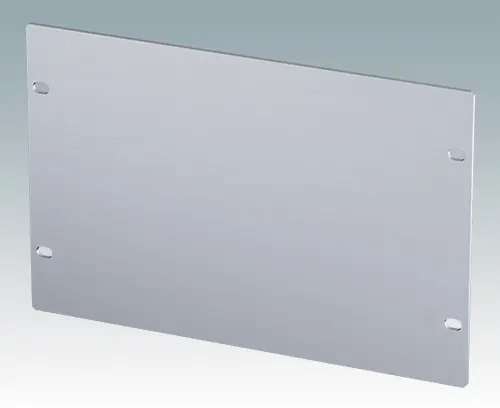

M6010040 Front panel 4Ux10.5
Scroll

M6010040

Front panel 4Ux10.5"

Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.

Supply

Front Panel

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6010040

Please select the product details you would like to include in the PDF.

Close
  • To be used for

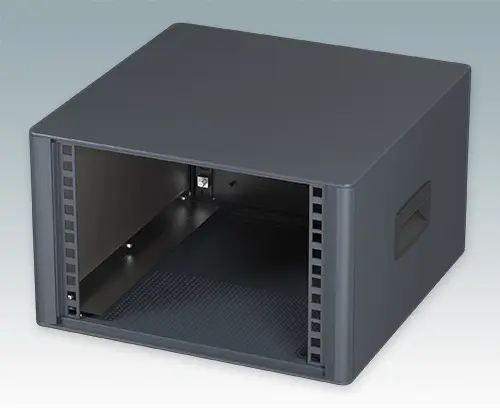

M6610444 TECHNOMET 10.5" 4Ux330mm

M6610444

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6610444

TECHNOMET 10.5" 4Ux330mm
product added to your basket
Aluminium
Anthracite RAL 7016
200x323x330mm

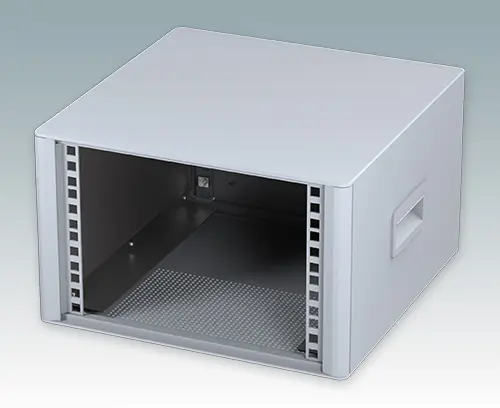

M6610445 TECHNOMET 10.5" 4Ux330mm

M6610445

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6610445

TECHNOMET 10.5" 4Ux330mm
product added to your basket
Aluminium
Light grey RAL 7035
200x323x330mm
M6610454 TECHNOMET 10.5" 4Ux330mm

M6610454

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6610454

TECHNOMET 10.5" 4Ux330mm
product added to your basket
Aluminium
Anthracite RAL 7016
200x323x330mm

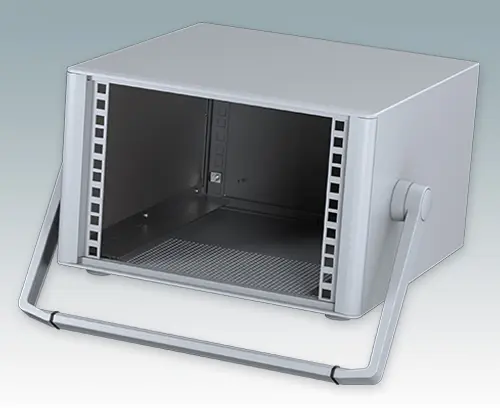

M6610455 TECHNOMET 10.5" 4Ux330mm

M6610455

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

Close

M6610455

TECHNOMET 10.5" 4Ux330mm
product added to your basket
Aluminium
Light grey RAL 7035
200x323x330mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Matt anodised
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Width
269.2 mm
Height
3 mm
Depth
176.95 mm
Height Unit
4 U

Catalogue Pages

Drawings

3D Models

Weight/1 part
0.3 kg
Customs tariff number
(METCASE product)
76061293
Country of manufacture
U.K.
