M5600045 Case Feet Kit 2
Scroll

M5600045

Case Feet Kit 2

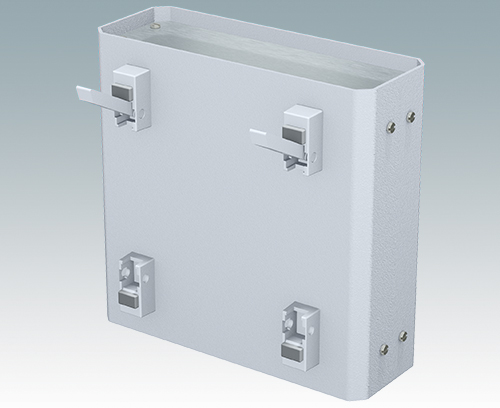

Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version

With tilt legs.

Supply

Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5600045

Please select the product details you would like to include in the PDF.

Close
  • To be used for
M4919115 VERSAMET 19" 1Ux165mm

M4919115

VERSAMET 19" 1Ux165mm Modern and versatile 19" rack cases with anodised front panel and integrated 'comfort-handles'. Folded aluminium case body with all fixings hidden on the underside. Removable base and rear panel for easy access.

Supply 1U x 19" front panel, two handles, top cover, base panel, rear panel, M3 x 8 mm (x6), M3 x 8 mm (x4), M4 nut and washer (x4). Supplied assembled.

Close

M4919115

VERSAMET 19" 1Ux165mm
product added to your basket
Aluminium
Light grey RAL 7035
44x483x165mm
M4919125 VERSAMET 19" 1Ux265mm

M4919125

VERSAMET 19" 1Ux265mm Modern and versatile 19" rack cases with anodised front panel and integrated 'comfort-handles'. Folded aluminium case body with all fixings hidden on the underside. Removable base and rear panel for easy access.

Supply 1U x 19" front panel, two handles, top cover, base panel, rear panel, M3 x 8 mm (x6), M3 x 8 mm (x6), M4 nut and washer (x4). Supplied assembled.

Close

M4919125

VERSAMET 19" 1Ux265mm
product added to your basket
Aluminium
Light grey RAL 7035
44x483x265mm

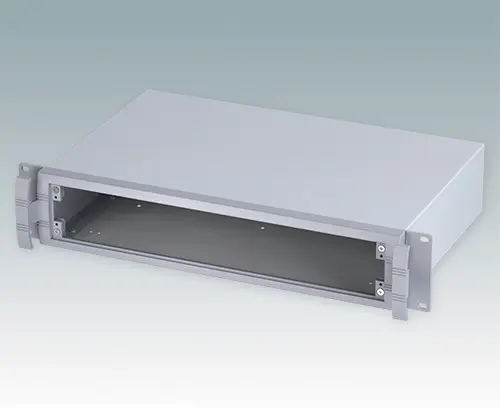

M5619225 UNIMET 19" 2Ux280mm

M5619225

UNIMET 19" 2Ux280mm Modern high quality 19" rack case with integrated 'comfort handles'. All aluminium design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply 19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

Close

M5619225

UNIMET 19" 2Ux280mm
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
88x482.6x280mm

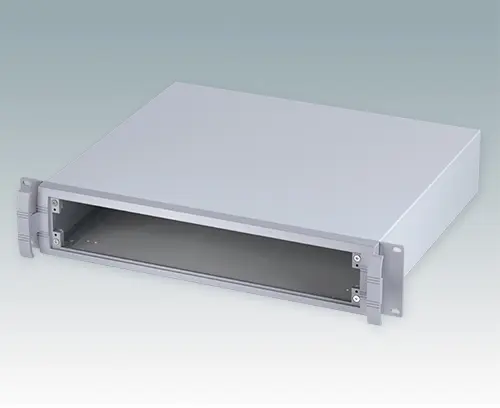

M5619235 UNIMET 19" 2Ux380mm

M5619235

UNIMET 19" 2Ux380mm Modern high quality 19" rack case with integrated 'comfort handles'. All aluminium design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply 19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

Close

M5619235

UNIMET 19" 2Ux380mm
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
88x482.6x380mm

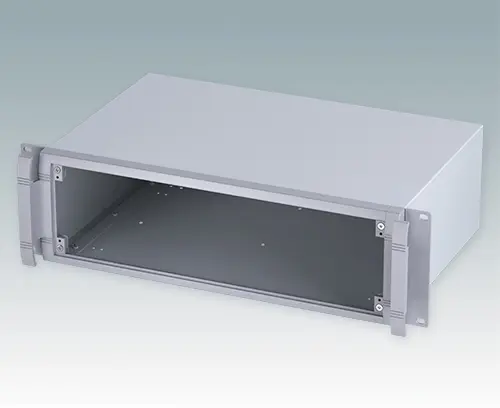

M5619325 UNIMET 19" 3Ux280mm

M5619325

UNIMET 19" 3Ux280mm Modern high quality 19" rack case with integrated 'comfort handles'. All aluminium design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply 19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

Close

M5619325

UNIMET 19" 3Ux280mm
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
132.5x482.6x280mm
M5619335 UNIMET 19" 3Ux380mm

M5619335

UNIMET 19" 3Ux380mm Modern high quality 19" rack case with integrated 'comfort handles'. All aluminium design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply 19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

Close

M5619335

UNIMET 19" 3Ux380mm
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
132.5x482.6x380mm

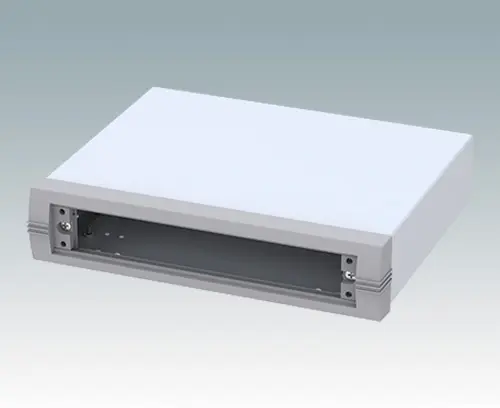

M5623005 UNIMET 1

M5623005

UNIMET 1 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5623005

UNIMET 1
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x190x50mm
M5623015 UNIMET-PLUS 1

M5623015

UNIMET-PLUS 1 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Two standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4). Supplied assembled.

Close

M5623015

UNIMET-PLUS 1
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x193x50mm

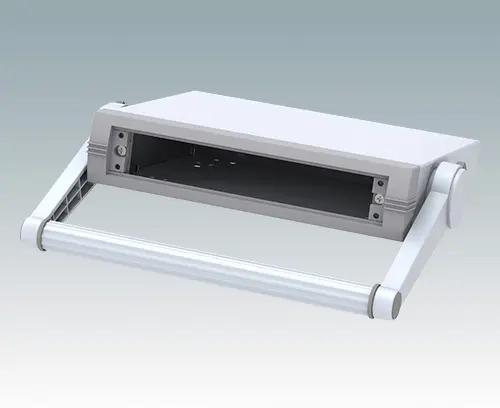

M5623025 UNIMET 1H

M5623025

UNIMET 1H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5623025

UNIMET 1H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x190x50mm
M5623035 UNIMET-PLUS 1H

M5623035

UNIMET-PLUS 1H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4). Supplied assembled.

Close

M5623035

UNIMET-PLUS 1H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x193x50mm
M5623105 UNIMET 2

M5623105

UNIMET 2 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5623105

UNIMET 2
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x190x85mm
M5623115 UNIMET-PLUS 2

M5623115

UNIMET-PLUS 2 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5623115

UNIMET-PLUS 2
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x193x85mm

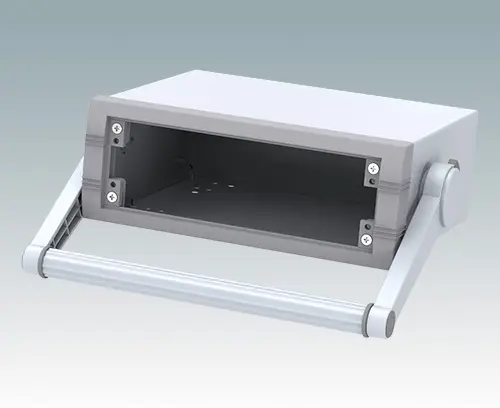

M5623125 UNIMET 2H

M5623125

UNIMET 2H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5623125

UNIMET 2H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x190x85mm
M5623135 UNIMET-PLUS 2H

M5623135

UNIMET-PLUS 2H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5623135

UNIMET-PLUS 2H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x193x85mm

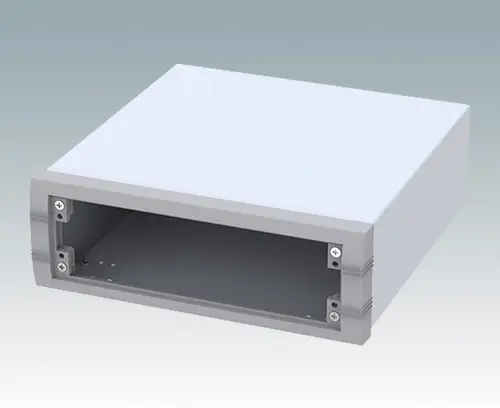

M5625105 UNIMET 3

M5625105

UNIMET 3 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5625105

UNIMET 3
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x260x85mm

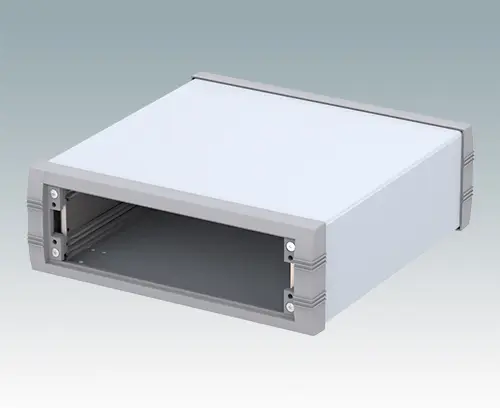

M5625115 UNIMET-PLUS 3

M5625115

UNIMET-PLUS 3 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625115

UNIMET-PLUS 3
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x263x85mm

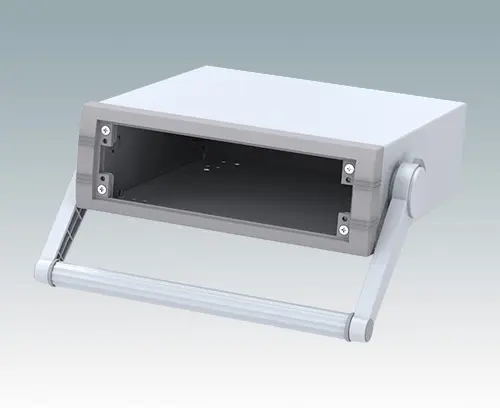

M5625125 UNIMET 3H

M5625125

UNIMET 3H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5625125

UNIMET 3H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x260x85mm

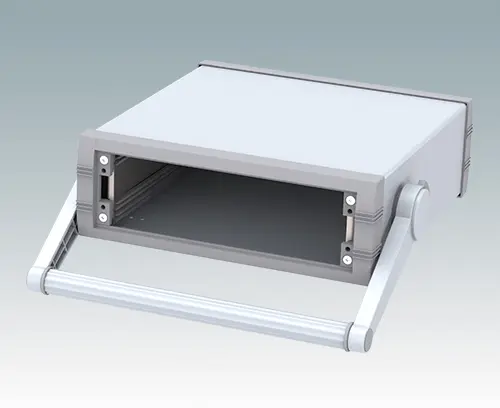

M5625135 UNIMET-PLUS 3H

M5625135

UNIMET-PLUS 3H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625135

UNIMET-PLUS 3H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x263x85mm

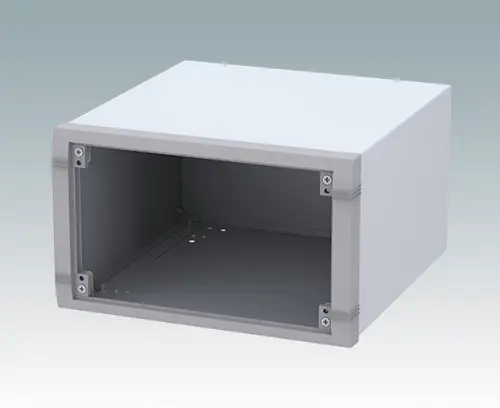

M5625305 UNIMET 5

M5625305

UNIMET 5 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5625305

UNIMET 5
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x260x150mm

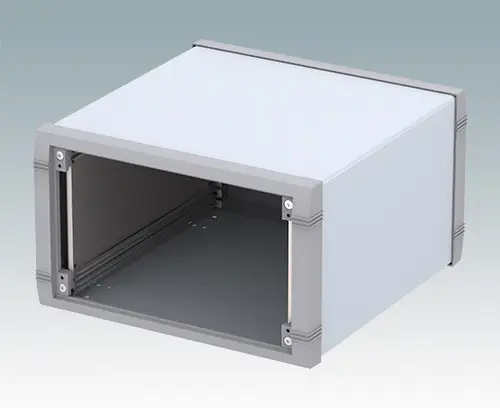

M5625315 UNIMET-PLUS 5

M5625315

UNIMET-PLUS 5 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625315

UNIMET-PLUS 5
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x263x150mm

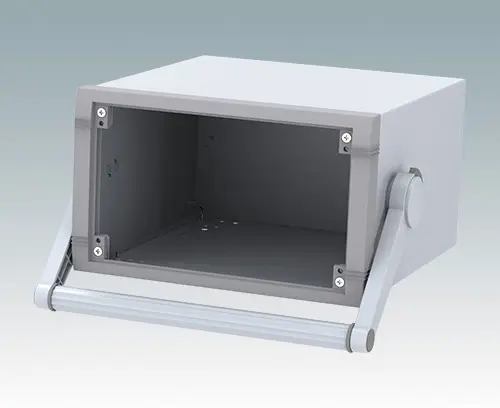

M5625325 UNIMET 5H

M5625325

UNIMET 5H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5625325

UNIMET 5H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x260x150mm

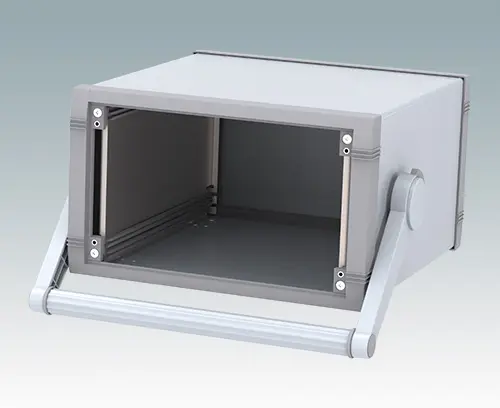

M5625335 UNIMET-PLUS 5H

M5625335

UNIMET-PLUS 5H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5625335

UNIMET-PLUS 5H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
250x263x150mm

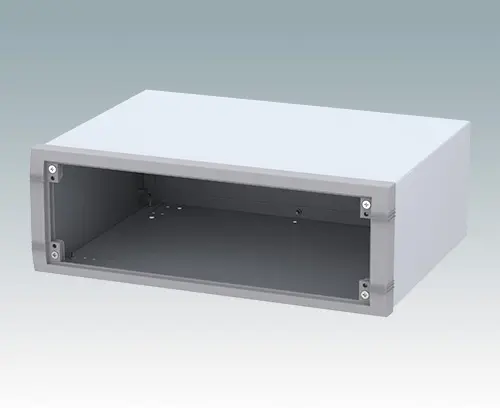

M5635205 UNIMET 4

M5635205

UNIMET 4 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5635205

UNIMET 4
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x260x120mm

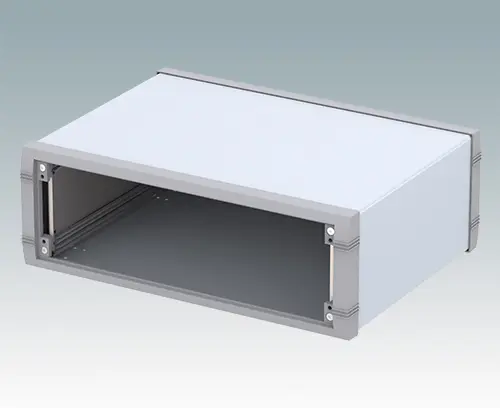

M5635215 UNIMET-PLUS 4

M5635215

UNIMET-PLUS 4 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5635215

UNIMET-PLUS 4
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x263x120mm

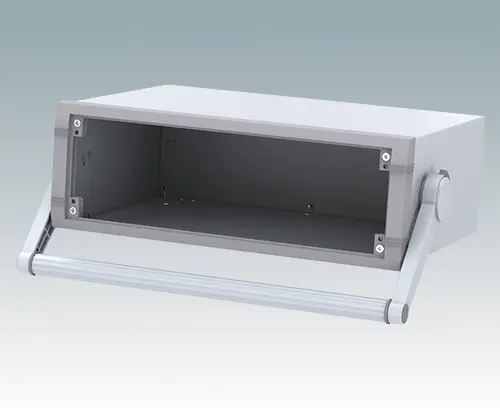

M5635225 UNIMET 4H

M5635225

UNIMET 4H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5635225

UNIMET 4H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x260x120mm

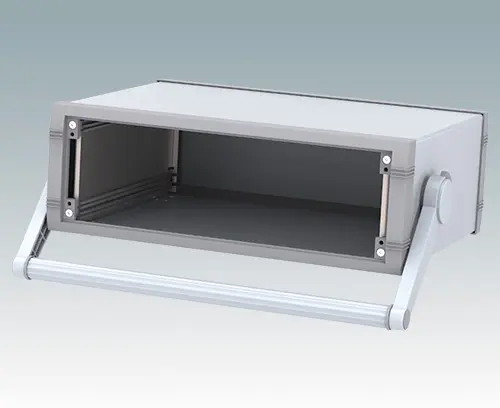

M5635235 UNIMET-PLUS 4H

M5635235

UNIMET-PLUS 4H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5635235

UNIMET-PLUS 4H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x263x120mm

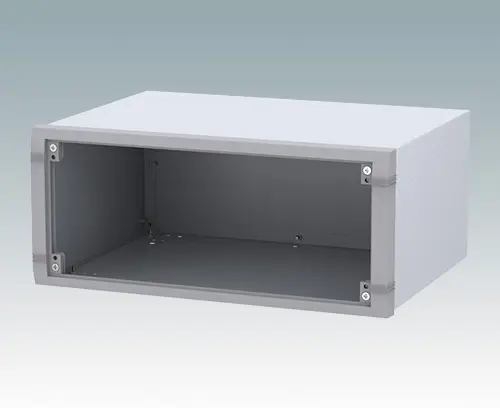

M5635305 UNIMET 6

M5635305

UNIMET 6 Modern instrument enclosure for desktop electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The base and rear panels are removable for easy access. Mounting holes in base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version Without handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4), M3 x 8 mm (x4). Supplied assembled.

Close

M5635305

UNIMET 6
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x260x150mm

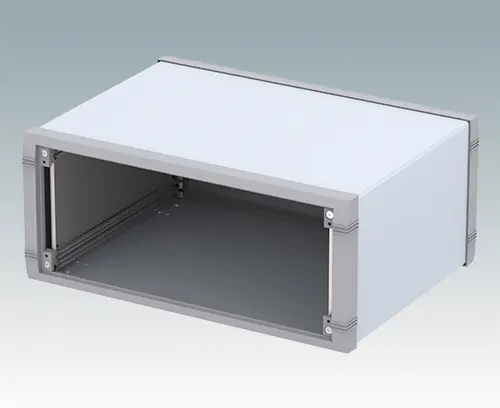

M5635315 UNIMET-PLUS 6

M5635315

UNIMET-PLUS 6 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5635315

UNIMET-PLUS 6
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x263x150mm
M5635325 UNIMET 6H

M5635325

UNIMET 6H Modern instrument enclosure with handle/bail arm for desktop and portable electronics. Highly attractive die cast front bezel is fitted to the fabricated case body. The handle/bail arm can be indexed at 30° increments.The base and rear panels are removable for easy access. Mounting holes in the base are designed for fitting the accessory PCB pillars. Order the front panel separately.

Version With handle/bail arm

Supply Front bezel, top cover, base panel, rear panel, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x2), M3 x 8 mm (x4). Supplied assembled.

Close

M5635325

UNIMET 6H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x260x150mm

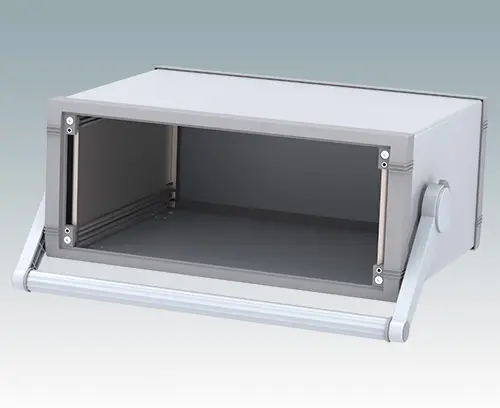

M5635335 UNIMET-PLUS 6H

M5635335

UNIMET-PLUS 6H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5635335

UNIMET-PLUS 6H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
350x263x150mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
ABS (Tilt leg) (UL 94 HB)
Colour
Light grey RAL 7035
Standards
REACH compliant
RoHS compliant
Length
34 mm
Width
17 mm
Height
16 mm

Catalogue Pages

3D Models

Weight/1 part
0.04 kg
Customs tariff number
(METCASE product)
39269097
Country of manufacture
U.K.
