M5302213 Wall mount kit M300
Scroll

M5302213

Wall mount kit M300

Wall mounting kit for UNIDESK M300 cases. The two extrusion profiles fit into grooves in the rear or underside of the case. This allows the UNIDESK to be mounting vertically or horizontally on a wall or other surface. The profiles have optional fixing holes to allow for easier adjustment when mounting.

Supply

2 anodised extrusion profiles

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5302213

Please select the product details you would like to include in the PDF.

Close
  • To be used for

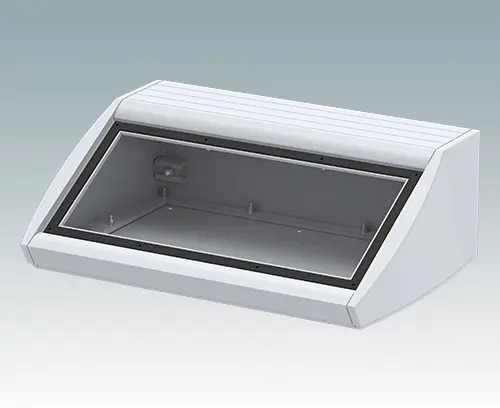

M5330105 UNIDESK M300 IP 54

M5330105

UNIDESK M300 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5330105

UNIDESK M300 IP 54
product added to your basket
Aluminium
Light grey RAL 7035
300x200x102mm
IP 54
M5330109 UNIDESK M300 IP 54

M5330109

UNIDESK M300 IP 54 Ergonomic IP 54 rated sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels. Recessed rear face for mounting switches and power and data connections. To maintain IP 54 rating, fit PCB pillars M5600001, or your own plugs to the mounting holes in the base panel.

Version With sealing gaskets (IP 54)

Supply Enclosure body, base panel, 4 IP 54 gaskets, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5330109

UNIDESK M300 IP 54
product added to your basket
Aluminium
Black RAL 9005
300x200x102mm
IP 54
M5330115 UNIDESK M300

M5330115

UNIDESK M300 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5330115

UNIDESK M300
product added to your basket
Aluminium
Light grey RAL 7035
300x200x102mm

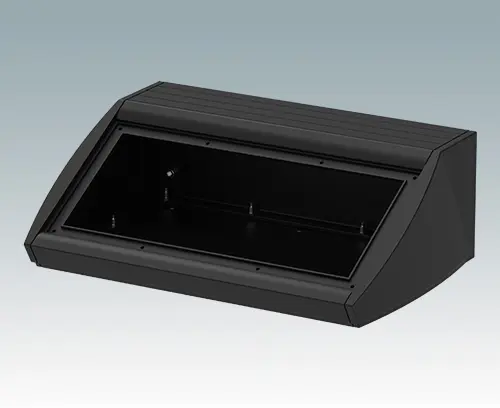

M5330119 UNIDESK M300

M5330119

UNIDESK M300 Ergonomic sloping front enclosure for desktop or wall mounted electronics equipment. Pe-assembled aluminium case body with removable base panel. Front aperture for mounting the accessory front panels.  Recessed rear face for mounting switches and power and data connections.

Version Without sealing gaskets

Supply Enclosure body, base panel, 4 non-slip feet and front panel fixing screws. Supplied assembled.

Close

M5330119

UNIDESK M300
product added to your basket
Aluminium
Black RAL 9005
300x200x102mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Matt anodised
Standards
REACH compliant
RoHS compliant

Catalogue Pages

Assembly Instructions (Group)

Drawings

3D Models

Weight/1 part
0.07 kg
Customs tariff number
(METCASE product)
76042990
Country of manufacture
U.K.
