M5700203 PCB guide, 102mm
Scroll

M5700203

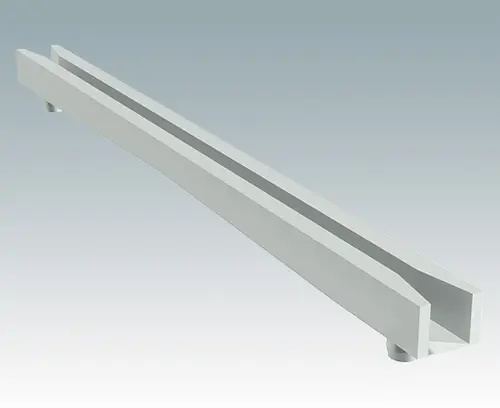

PCB guide, 102mm

Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 1/1H/2/2H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply

1 guide

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5700203

Please select the product details you would like to include in the PDF.

Close
  • To be used for
M5623015 UNIMET-PLUS 1

M5623015

UNIMET-PLUS 1 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Two standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4). Supplied assembled.

Close

M5623015

UNIMET-PLUS 1
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x193x50mm
M5623035 UNIMET-PLUS 1H

M5623035

UNIMET-PLUS 1H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x4). Supplied assembled.

Close

M5623035

UNIMET-PLUS 1H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x193x50mm
M5623115 UNIMET-PLUS 2

M5623115

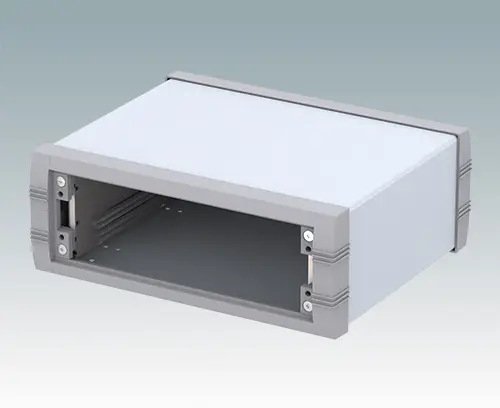

UNIMET-PLUS 2 Advanced instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the fabricated case body. Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version Without handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5623115

UNIMET-PLUS 2
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x193x85mm
M5623135 UNIMET-PLUS 2H

M5623135

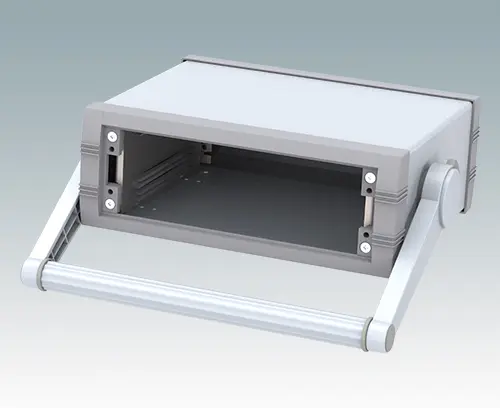

UNIMET-PLUS 2H Advanced instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the fabricated case body. The handle can be indexed at 30° increments.Pre-assembled internal chassis supplied with four snap-in PCB guides. Four standard guide positions - additional positions can be punched on demand. The case is supplied with a rear panel and four non-slip feet. Order front panels separately.

Version With handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, 4 nylon PCB guides, carry handle/bail arm kit, non-slip self-adhesive foot (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M5623135

UNIMET-PLUS 2H
product added to your basket
Aluminium
Light grey/window grey RAL 7035/7040
230x193x85mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA 6/6 (UL 94 V-2)
Colour
White
Standards
REACH compliant
RoHS compliant

Catalogue Pages

Drawings

3D Models

Weight/1 part
0.01 kg
Customs tariff number
(METCASE product)
39269097
Country of manufacture
U.K.
