Accessories for fitting PCBs
Scroll

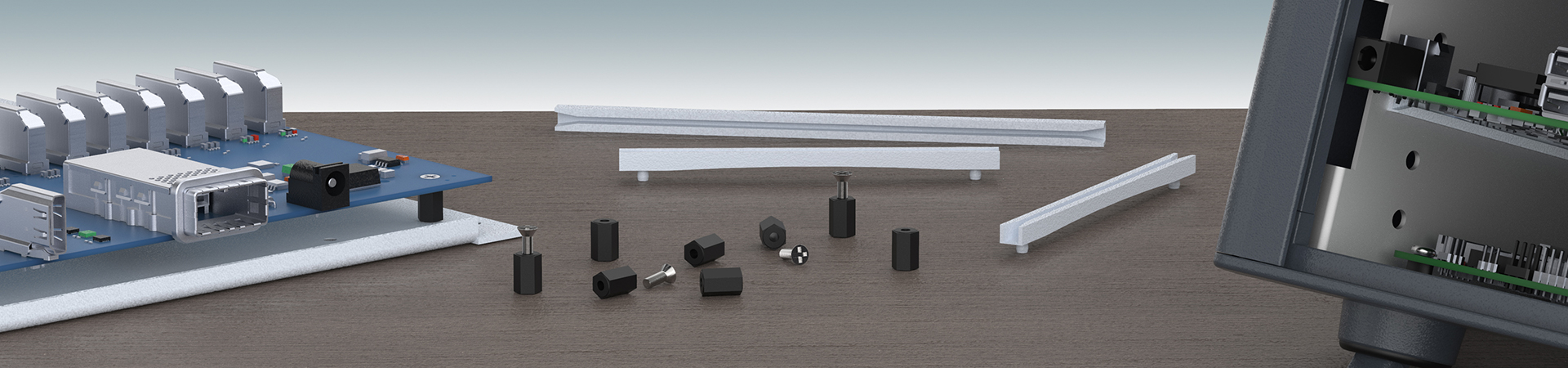

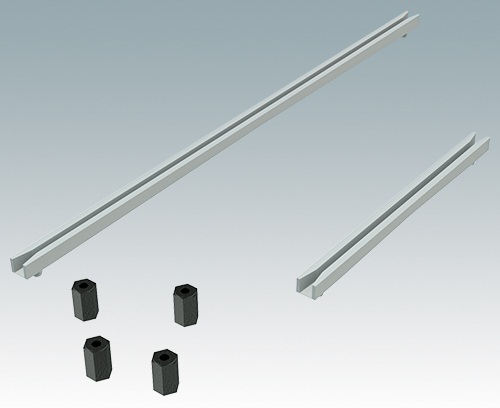

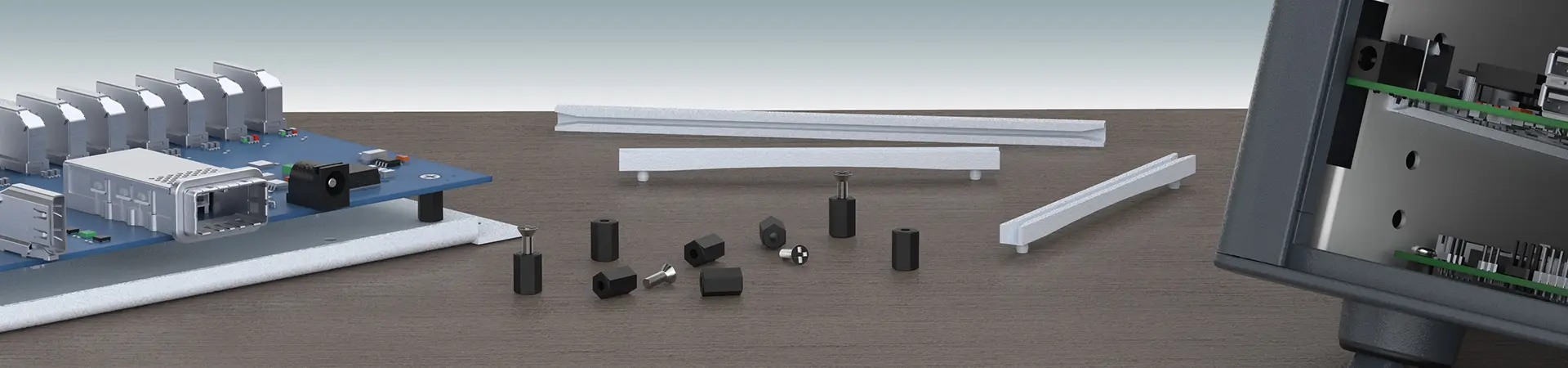

PCB Mounting Accessories

Universal accessories for mounting PCBs in any enclosures

  • M3 plastic PCB mounting pillars, 10 mm high
  • Snap-in PCB guides for 1.6 mm thick PCBs.
Generate PDF
  • Browse Full List
  • Catalogue Documents
M5600001 PCB mounting kit

M5600001

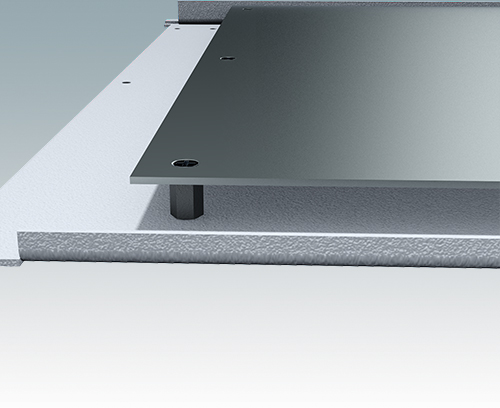

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

Close

M5600001

PCB mounting kit
product added to your basket
PA 6
Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket
Steel
Zinc coated
6mm

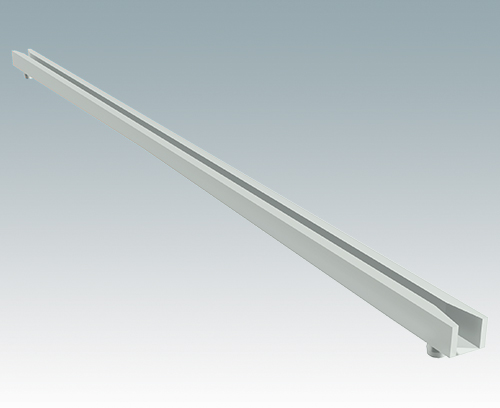

M5700202 PCB guide, 216mm

M5700202

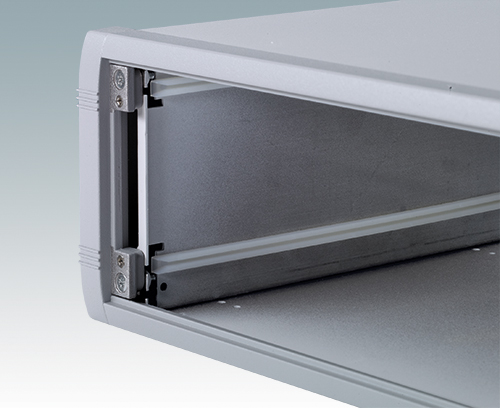

PCB guide, 216mm Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 3/3H/4/4H/5/5H/6/6H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply 1 guide

Close

M5700202

PCB guide, 216mm
product added to your basket
PA 6/6 (UL 94 V-2)
White

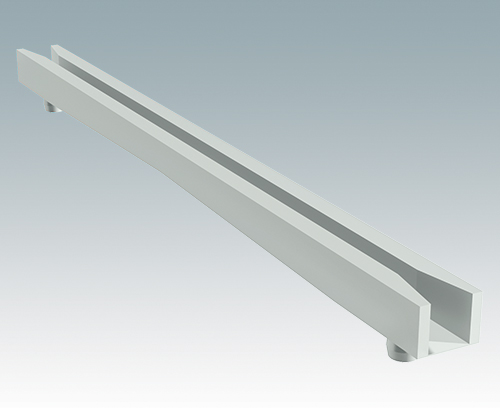

M5700203 PCB guide, 102mm

M5700203

PCB guide, 102mm Snap-in PCB guide for 1.6 mm PCBs. See drawing for punching details. Fits to Unimet-Plus 1/1H/2/2H.

Note: Unimet-Plus enclosures are already supplied with 4 guides as standard.

Supply 1 guide

Close

M5700203

PCB guide, 102mm
product added to your basket
PA 6/6 (UL 94 V-2)
White
M6490010 PCB Guide, 102 mm

M6490010

PCB Guide, 102 mm Snap-in PCB guide for 0.5 mm to 2.0 mm thick PCBs. See drawing for punching details. Suitable for Technomet R210, R210H, R212, R212H, SL212, R215S, R215H, R310, R310H, R312, R312H, R315S, R315H and SL315S. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R210/R210H 4 5
R212/R212H 4 7
SL212 4 7
R215S/R215H 4 9
R310/R310H 4 5
R312/R312H 4 7
R315S/R315H 4 9
SL315S 4 9

Supply 1 PCB guide

Close

M6490010

PCB Guide, 102 mm
product added to your basket
PA 6/6 (UL 94 V-0)
Natural finish
101.6x7.5x3.5mm
M6490020 PCB Guide, 140 mm

M6490020

PCB Guide, 140 mm Snap-in PCB guide for 0.5 mm to 2.0 mm thick PCBs. See drawing for punching details. Suitable for Technomet R107, R107H, R110, SL110 and R110H. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R107/R107H 2 3
R110/R110H 2 5
SL110 2 5

Supply 1 PCB guide

Close

M6490020

PCB Guide, 140 mm
product added to your basket
PA 6/6 (UL 94 V-0)
Natural finish
139.7x7.5x3.5mm
