M6400812 Shelf Kit 124
Scroll

M6400812

Shelf Kit 124

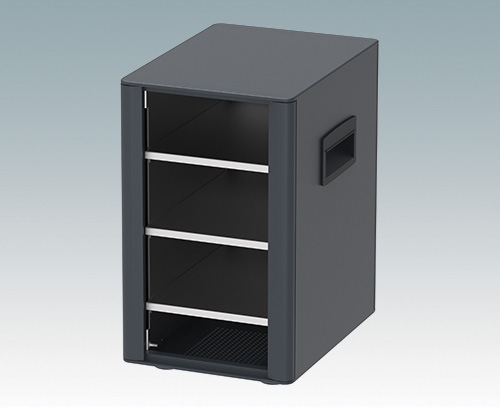

Internal shelf kit for tower version TX124S. Designed for mounting PCBs and electronic assemblies. The shelf is assembled to the internal chassis using the fixings included in the kit. Up to three shelves can be fitted to the TX124S size tower.

Supply

Shelf (1.5 mm natural aluminium), M4 x 12 (x4)

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6400812

Please select the product details you would like to include in the PDF.

Close
  • To be used for

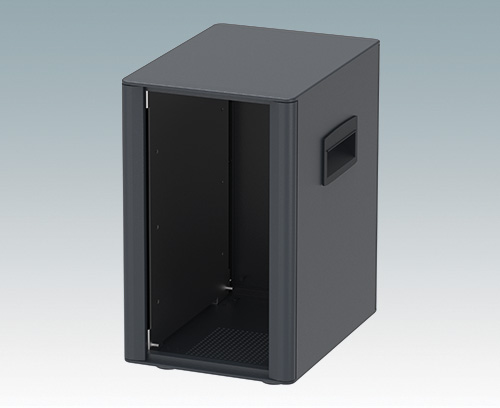

M6417654 Technomet TX124S

M6417654

Technomet TX124S Highly attractive tower style aluminium enclosures for instrumentation. Space-saving footprint maximises tabletop or workstation space. Modern and cohesive design with no visible fixing screws. Diecast front and rear bezels fit flush in the case body. Snap-on front and rear trims hide the case and front panel screws. Ventilation holes in the base and rear panel. Internal chassis for mounting three or four shelves (accessories) for PCBs and assemblies. M4 earth points on all panels. Supplied with side handles and non-slip ABS feet. Order front panels, shelves and PCB guides separately. Order your own fully customised version.

Version Tower format

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M6417654

Technomet TX124S
product added to your basket
Aluminium
Anthracite RAL 7016
175x240x280mm

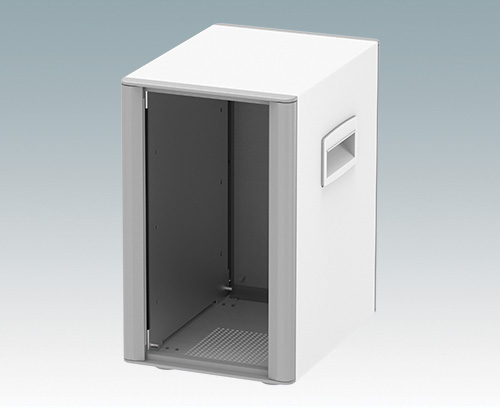

M6417656 Technomet TX124S

M6417656

Technomet TX124S Highly attractive tower style aluminium enclosures for instrumentation. Space-saving footprint maximises tabletop or workstation space. Modern and cohesive design with no visible fixing screws. Diecast front and rear bezels fit flush in the case body. Snap-on front and rear trims hide the case and front panel screws. Ventilation holes in the base and rear panel. Internal chassis for mounting three or four shelves (accessories) for PCBs and assemblies. M4 earth points on all panels. Supplied with side handles and non-slip ABS feet. Order front panels, shelves and PCB guides separately. Order your own fully customised version.

Version Tower format

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

Close

M6417656

Technomet TX124S
product added to your basket
Aluminium
Traffic white/traffic grey A RAL 9016/7042
175x240x280mm
  • Technical Data
  • 3D-Models & Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Natural finish
Standards
REACH compliant
RoHS compliant
Width
130 mm
Height
15 mm
Depth
221 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
0.4 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
