Technomet instrument enclosures

Technomet

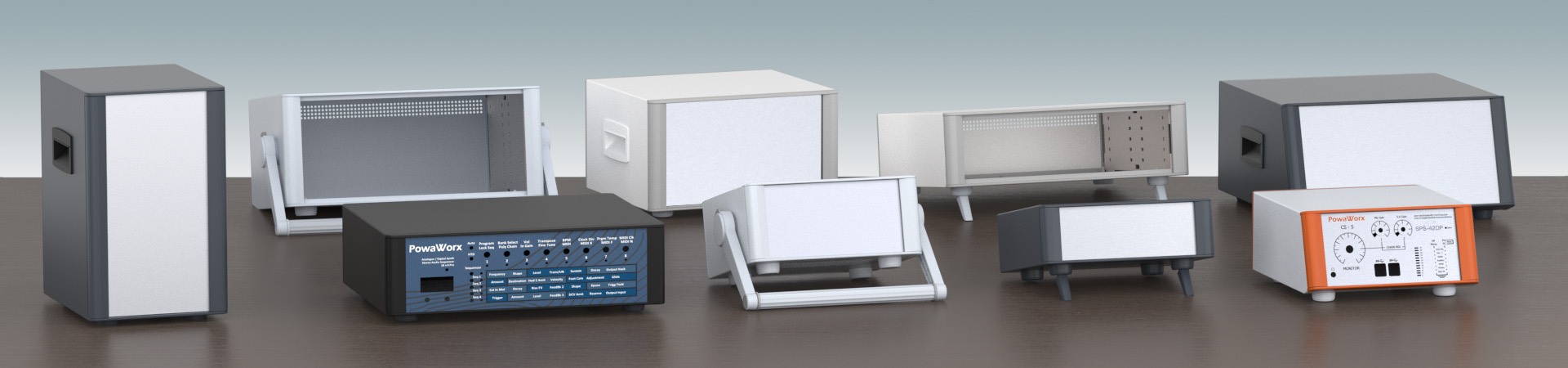

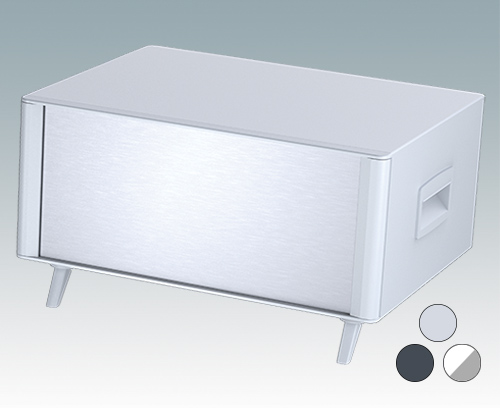

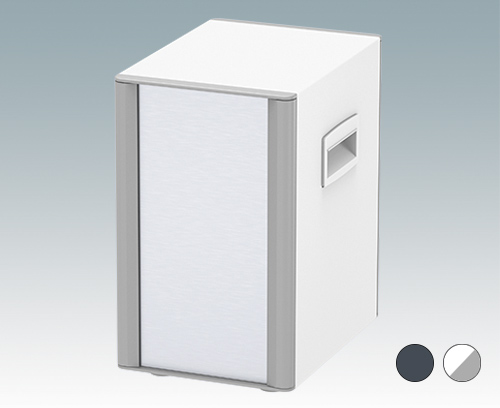

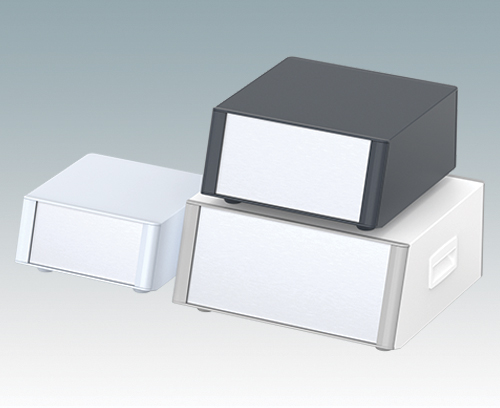

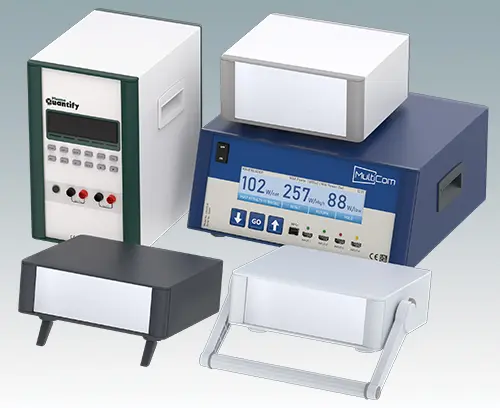

Highly attractive instrument enclosures

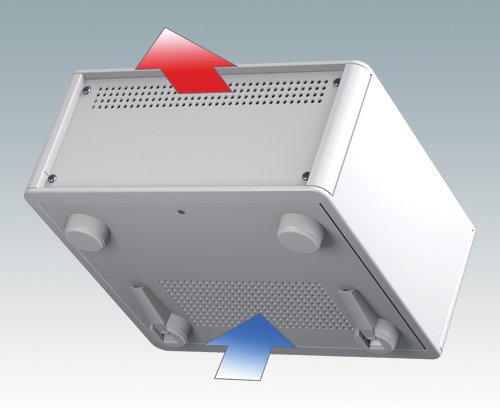

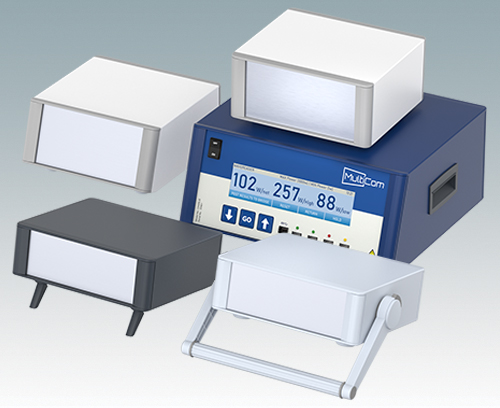

  • Advanced desktop and portable enclosures in eleven standard sizes all with ventilation
  • Modern and cohesive design with no visible fixing screws.

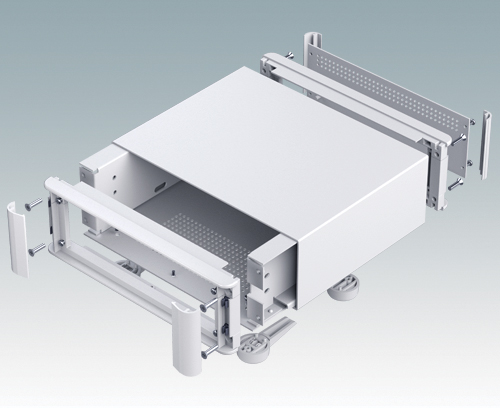

  • Die cast front and rear bezels fit flush with the case body for a smooth appearance

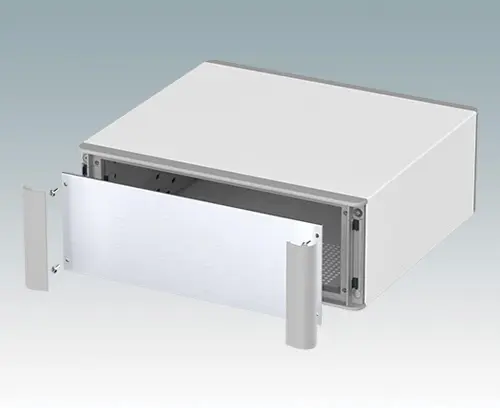

  • Snap-on front trims hide the case and front panel fixing screws

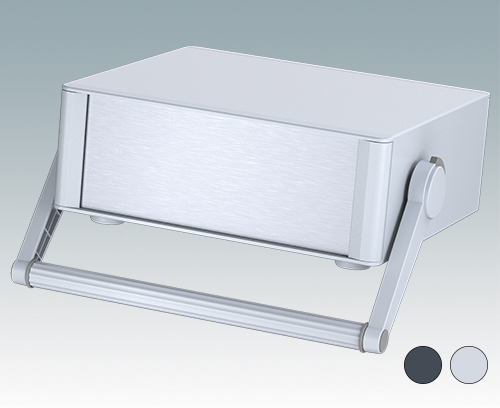

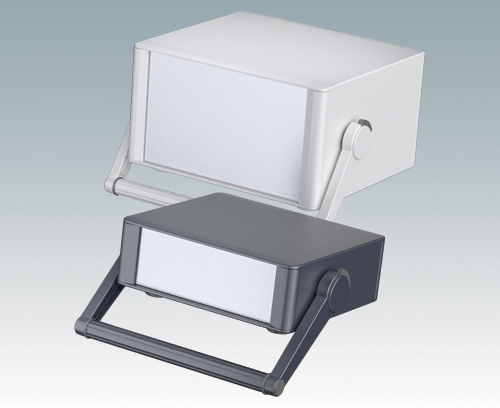

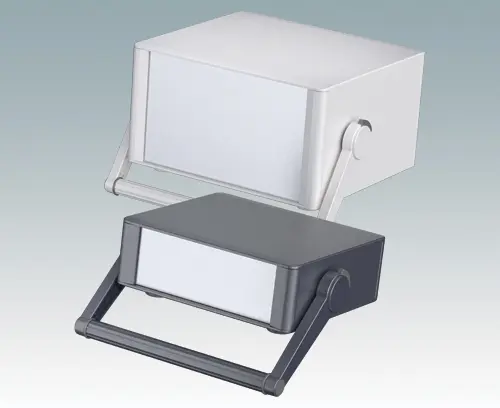

  • All sizes available with or without a tilt/swivel carry handle, or ABS side handles (150 mm version)

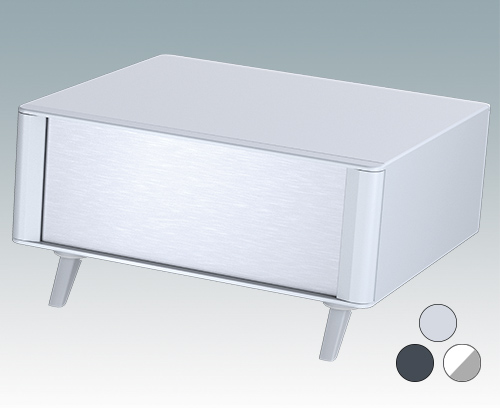

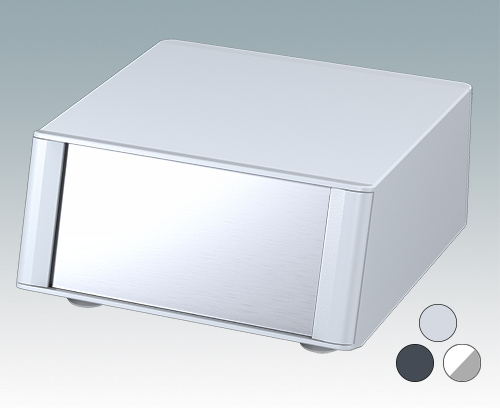

  • Three sizes with sloping front bezel

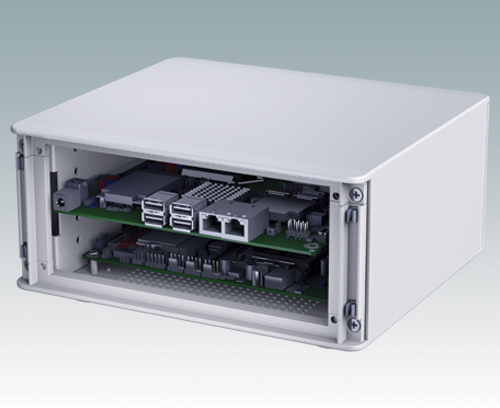

  • Base panel pre-fitted with four M3 PCB mounting pillars

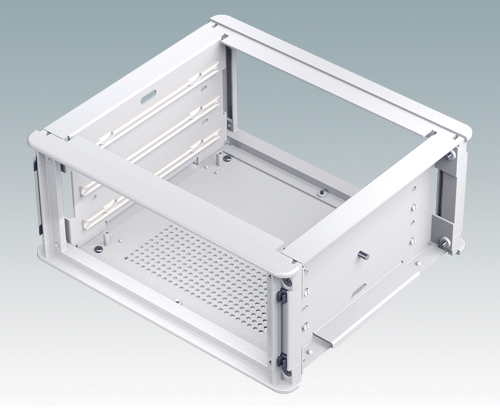

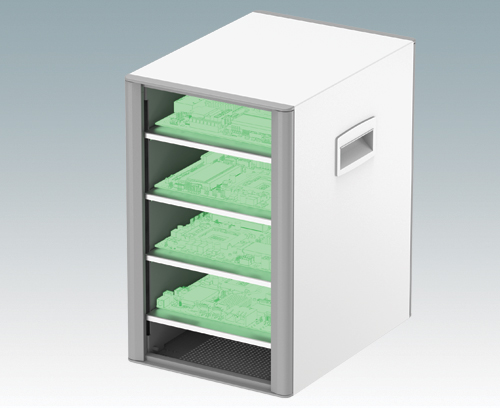

  • Internal chassis prepunched for fitting snap-in PCB guides (accessories) in 3, 5, 7 or 9 positions

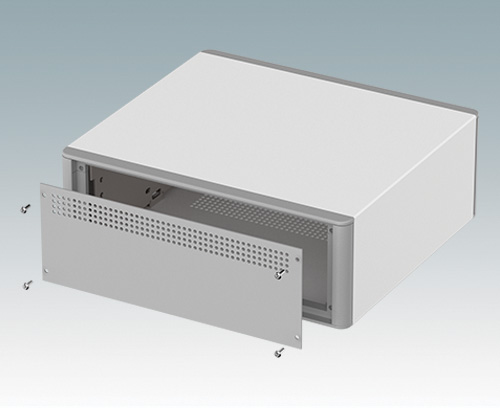

  • Removable rear panel - recessed for protection of connectors, switches etc.

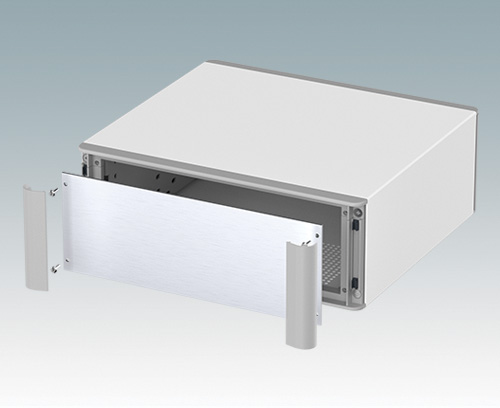

  • Anodised front panel (accessory) - recessed for protection of  keypads, displays etc.
  • All case panels fitted with M4 threaded pillars for earth connection
  • Supplied with four modern ABS feet with non-slip pads.

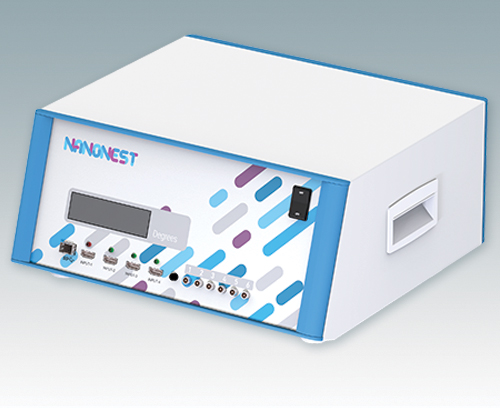

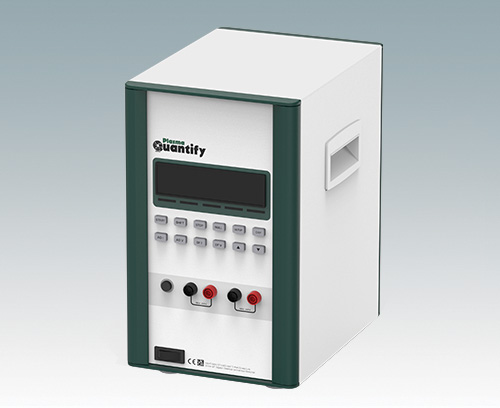

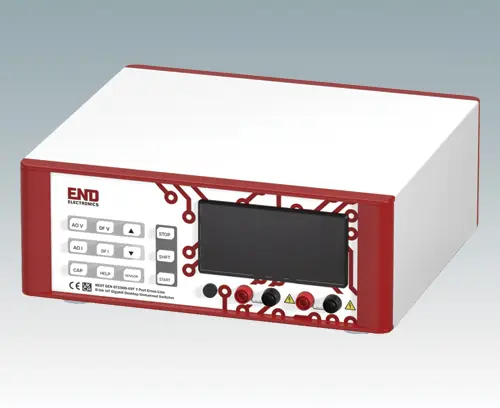

Order your own fully customised version learn more here >>

  • Video

Application fields

Medical and wellness devices, test and measurement equipment, industrial control, peripheral devices and interfaces, switchboxes, communications and laboratory equipment.
  • Select Versions
  • Accessories
  • Catalogue Documents
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket
Steel
Zinc coated
6mm

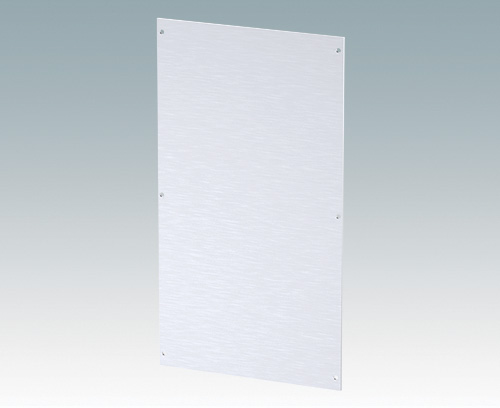

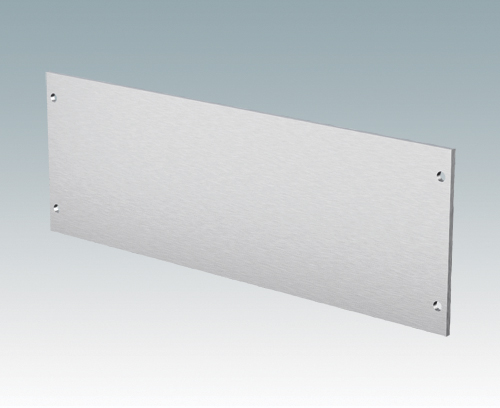

M6400700 Front Panel 107

M6400700

Front Panel 107 Front panel for Technomet R107 and R107H.

Supply Front panel (fixings supplied with the cases).

Close

M6400700

Front Panel 107
product added to your basket
Aluminium
Matt anodised
197x2x65.8mm

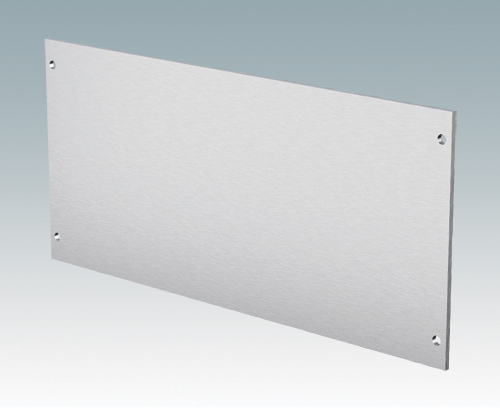

M6400701 Front Panel 110

M6400701

Front Panel 110 Front panel for Technomet R110, SL110 and R110H.

Supply Front panel (fixings supplied with the cases).

Close

M6400701

Front Panel 110
product added to your basket
Aluminium
Matt anodised
197x2x90.8mm

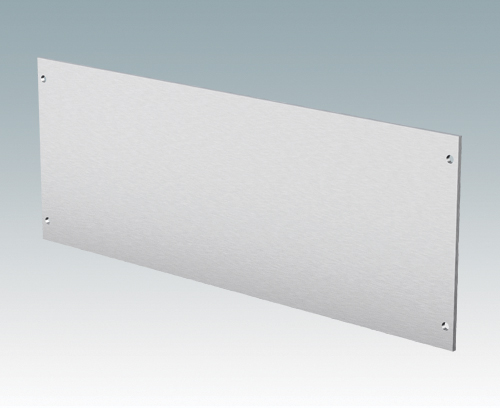

M6400702 Front Panel 210

M6400702

Front Panel 210 Front panel for Technomet R210 and R210H.

Supply Front panel (fixings supplied with the cases).

Close

M6400702

Front Panel 210
product added to your basket
Aluminium
Matt anodised
247x2x90.8mm

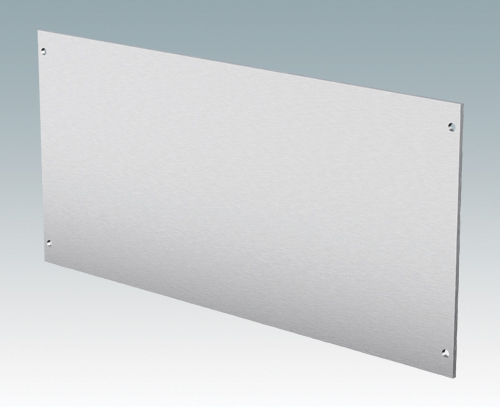

M6400703 Front Panel 212

M6400703

Front Panel 212 Front panel for Technomet R212, SL212 and R212H.

Supply Front panel (fixings supplied with the cases).

Close

M6400703

Front Panel 212
product added to your basket
Aluminium
Matt anodised
247x2x115.8mm

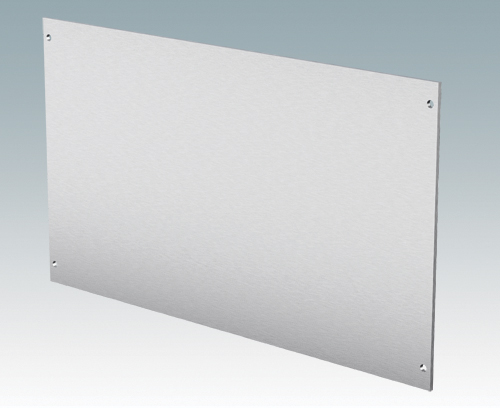

M6400704 Front Panel 215

M6400704

Front Panel 215 Front panel for Technomet R215S and R215H.

Supply Front panel (fixings supplied with the cases).

Close

M6400704

Front Panel 215
product added to your basket
Aluminium
Matt anodised
247x2x140.8mm

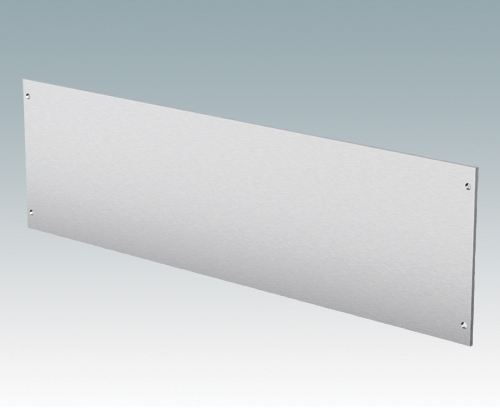

M6400705 Front Panel 310

M6400705

Front Panel 310 Front panel for Technomet R310 and R310H.

Supply Front panel (fixings supplied with the cases).

Close

M6400705

Front Panel 310
product added to your basket
Aluminium
Matt anodised
322x2x90.8mm
M6400706 Front Panel 312

M6400706

Front Panel 312 Front panel for Technomet R312 and R312H.

Supply Front panel (fixings supplied with the cases).

Close

M6400706

Front Panel 312
product added to your basket
Aluminium
Matt anodised
322x2x115.8mm
M6400707 Front Panel 315

M6400707

Front Panel 315 Front panel for Technomet R315S, SL315S and R315H.

Supply Front panel (fixings supplied with the cases).

Close

M6400707

Front Panel 315
product added to your basket
Aluminium
Matt anodised
322x2x140.8mm
M6490010 PCB Guide, 102 mm

M6490010

PCB Guide, 102 mm Snap-in PCB guide for 0.5 mm to 2.0 mm thick PCBs. See drawing for punching details. Suitable for Technomet R210, R210H, R212, R212H, SL212, R215S, R215H, R310, R310H, R312, R312H, R315S, R315H and SL315S. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R210/R210H 4 5
R212/R212H 4 7
SL212 4 7
R215S/R215H 4 9
R310/R310H 4 5
R312/R312H 4 7
R315S/R315H 4 9
SL315S 4 9

Supply 1 PCB guide

Close

M6490010

PCB Guide, 102 mm
product added to your basket
PA 6/6 (UL 94 V-0)
Natural finish
101.6x7.5x3.5mm

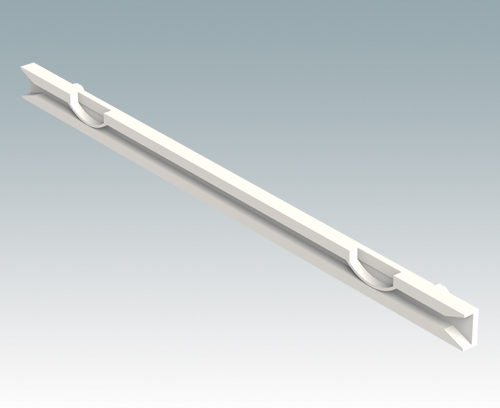

M6490020 PCB Guide, 140 mm

M6490020

PCB Guide, 140 mm Snap-in PCB guide for 0.5 mm to 2.0 mm thick PCBs. See drawing for punching details. Suitable for Technomet R107, R107H, R110, SL110 and R110H. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R107/R107H 2 3
R110/R110H 2 5
SL110 2 5

Supply 1 PCB guide

Close

M6490020

PCB Guide, 140 mm
product added to your basket
PA 6/6 (UL 94 V-0)
Natural finish
139.7x7.5x3.5mm
