M6421756 Technomet TX235S
Scroll

M6421756

Technomet TX235S

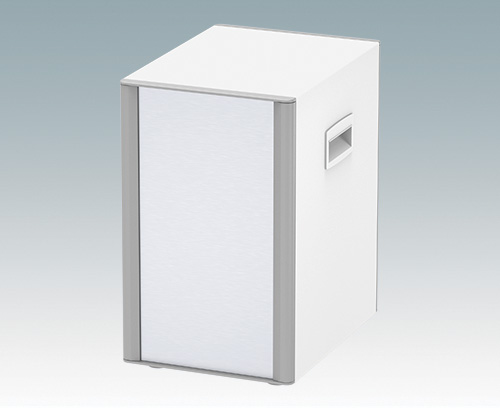

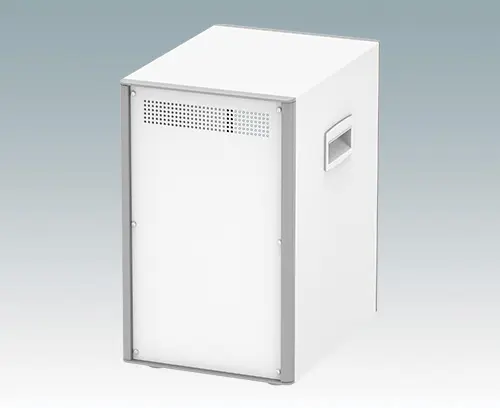

Highly attractive tower style aluminium enclosures for instrumentation. Space-saving footprint maximises tabletop or workstation space. Modern and cohesive design with no visible fixing screws. Diecast front and rear bezels fit flush in the case body. Snap-on front and rear trims hide the case and front panel screws. Ventilation holes in the base and rear panel. Internal chassis for mounting three or four shelves (accessories) for PCBs and assemblies. M4 earth points on all panels. Supplied with side handles and non-slip ABS feet. Order front panels, shelves and PCB guides separately. Order your own fully customised version.

Version

Tower format

Supply

Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), M3 x 6 mm (x4), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M6421756

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory

M6400715 Front Panel 235

M6400715

Front Panel 235 Front panel for Technomet TX124S.

Supply Front panel (fixings supplied with the cases).

Close

M6400715

Front Panel 235
product added to your basket
Aluminium
Matt anodised
192x2x340.8mm
M6400815 Shelf Kit TX235S

M6400815

Shelf Kit TX235S Internal shelf kit for tower version TX235S. Designed for mounting PCBs and electronic assemblies. The shelf is assembled to the internal chassis using the fixings included in the kit. Up to four shelves can be fitted to the TX235S size tower.

Supply Shelf (1.5 mm natural aluminium), M4 x 12 (x4)

Close

M6400815

Shelf Kit TX235S
product added to your basket
Aluminium
Natural finish
175x15x281mm
  • Technical Data
  • 3D-Models & Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Traffic white/traffic grey A RAL 9016/7042
Standards
REACH compliant
RoHS compliant
Width
220 mm
Depth
300 mm
Height
350 mm
PCB length, base
282 mm
PCB width, base
174 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
3.5 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
