M5501119 UNICASE 1
Scroll

M5501119

UNICASE 1

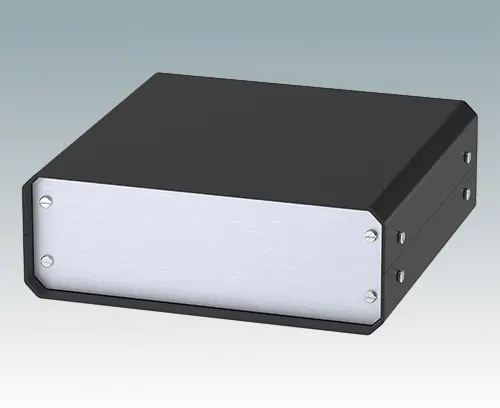

Attractive and highly versatile aluminium enclosure for desktop or portable electronics. Total access design with removable top and base for easier equipping. Internal PCB chassis has four guide rail positions for the PCBs. Two anodised aluminium front/rear panels included, plus 4 non-slip rubber feet. Simple assembly in just a few minutes.

Supply

Top cover, base cover, assembly extrusions (x2), front/rear panel (x2), non-slip grey rubber foot (x4), M3 x 6 mm (x16), M3 slide-in nut (x8).

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for M5501119

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories

Accessory "screws"

M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

Close

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket
Steel
Zinc coated
6mm

Accessory

M5500001 Unicase Assembly Tool

M5500001

Unicase Assembly Tool

This assembly tool locates the blue threaded nut holders in the correct position in the UNICASE extrusions profiles. The nut holders are then aligned perfectly with the cover assembly screws every time. This improves assembly time of the enclosures, especially for regular production runs. The tool is 3D printed in tough PA2200 (Nylon).

Supply Assembly tool (x1)

Close

M5500001

Unicase Assembly Tool
product added to your basket
PA 2200 (Polyamide)
White
44x13x27mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Aluminium
Colour
Black RAL 9005
Standards
REACH compliant
RoHS compliant
Width
185 mm
Depth
180 mm
Height
65 mm
PCB length, base
159 mm
PCB width, base
166 mm

Catalogue Pages

Assembly Instructions (Group)

Drawings

3D Models

Weight/1 part
0.96 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
U.K.
